Muffle furnace temperature curve setting

As an experimenter or industrial producer, have you ever encountered material performance issues due to improper temperature settings? As a core heating device in laboratories and industrial production, the temperature curve configuration of a muffle furnace directly impacts experimental outcomes and product quality. This guide will help you comprehensively understand muffle furnace functions, application scenarios, and scientifically set temperature curves while avoiding operational errors.

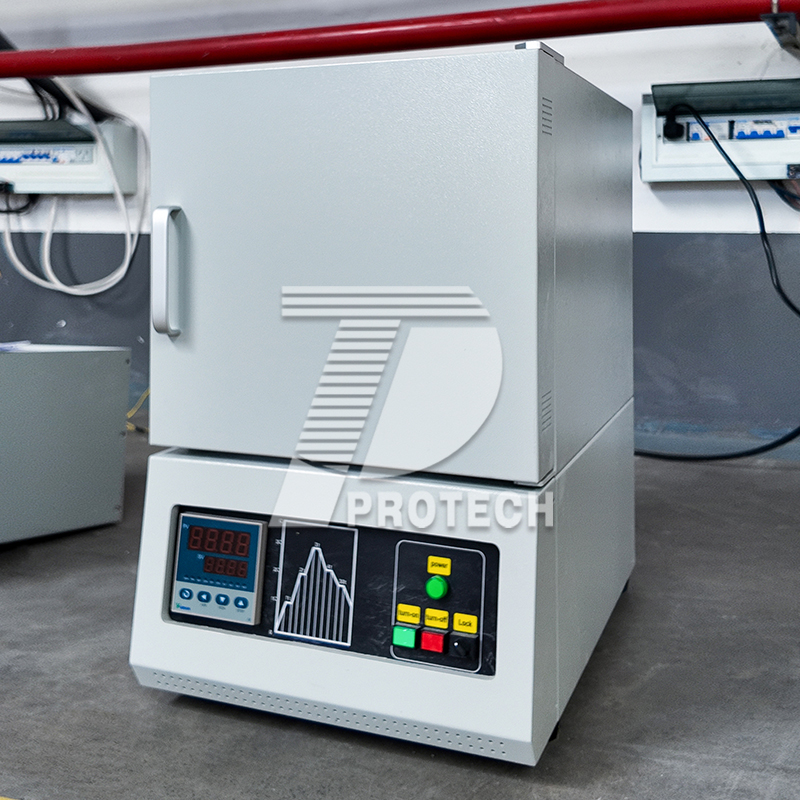

Protech muffle furnace

1. What Is a Muffle Furnace?
A muffle furnace (also known as a box-type resistance furnace) is a closed high-temperature device heated by electric elements. Its key features include excellent thermal insulation, uniform temperature distribution, and precise temperature control in air or specific atmospheres (typical range: 300°C–1800°C).

Structure:

Chamber (refractory materials)

Heating elements (silicon carbide rods, resistance wires)

Temperature control system

Safety protection devices

Advantages: Simple operation, stable temperature control, ideal for small-batch sample processing.

2. Application Scenarios
Muffle furnaces serve as versatile tools across industries due to their precise temperature control:

Materials Science: Ceramic sintering, metal annealing, glass melting.

Chemical Industry: Catalyst activation, powder calcination, organic matter ashing.

Laboratories: Heat treatment experiments in academic research and quality control.

Ceramics Processing: Glaze firing, precision ceramic molding.

3. Key Operational Guidelines
Preheating & Program Setup:

Preheat an empty furnace at low temperatures (first use) to eliminate moisture.

Confirm program compatibility with experimental requirements before loading.

Sample Placement:

Use high-temperature-resistant crucibles or trays.

Fill ≤2/3 of the chamber volume to ensure thermal uniformity.

Safety & Monitoring:

Never exceed rated temperatures to prevent element damage.

Monitor temperature controllers in real-time; shut down if anomalies occur.

Maintenance:

Open vents for volatile samples.

Clean residue monthly and inspect heating elements.

4. How to Set a Scientific Temperature Curve
The temperature curve acts as a "roadmap" for furnace operation. Adjust dynamically based on material properties and process goals:

Step 1: Define Process Requirements

Material Type: Metals, ceramics, and polymers require distinct heating rates.

Objective: Sintering, annealing, and ashing demand different temperature nodes.

Sample Quantity: Reduce heating rates for large batches to minimize thermal gradients.

Step 2: Configure Segmented Curves
A typical curve includes heating, holding, and cooling phases:

Heating Phase:

Initial rate: 5–10°C/min to prevent thermal stress.

Near target temperature (e.g., <50°C): Reduce to 1–5°C/min to avoid overshooting.

Holding Phase:

Duration: Match material reaction times (e.g., 2–4 hours for ceramic sintering).

Enable PID self-tuning for ±1°C stability in high-precision experiments.

Cooling Phase:

Natural cooling: Turn off heating for non-critical cooling.

Programmed cooling: Set rates (e.g., 3°C/min) to prevent deformation.

Step 3: Validation & Adjustment

Test with blank samples to record deviations.

Adjust heating rates or add protective gases (e.g., nitrogen) if issues arise.

5. Case Study: Alumina Ceramic Sintering
Heating Phase:

RT → 200°C at 5°C/min (remove moisture).

200°C → 1400°C at 8°C/min.

Holding Phase:

1400°C for 2 hours (grain growth).

Cooling Phase:

1400°C → 800°C at 3°C/min, then natural cooling.

6. Common Errors & Solutions
Error 1: Excessive Heating Rates

Issue: Thermal stress causes cracking/deformation.

Fix: Stage heating (e.g., 5°C/min below 300°C; 8–10°C/min above 800°C).

Error 2: Incorrect Holding Parameters

Issue: Incomplete reactions or incorrect temperatures.

Fix: Follow material-specific guidelines; validate with small samples.

Error 3: Uncontrolled Cooling

Issue: Brittle fractures or lattice defects.

Fix: Programmed cooling (3–5°C/min) through phase-change ranges.

Error 4: Neglecting Atmosphere Control

Issue: Oxidation or volatile contamination.

Fix: Use inert gases (N₂) for sensitive materials; open vents for volatiles.

Error 5: Skipping Calibration

Issue: Temperature deviations >10°C.

Fix: Calibrate every 3–6 months; verify uniformity with multi-point thermocouples.

7. Advanced Techniques
PID Self-Tuning: Automate parameter optimization for reduced human error.

Data Logging: Export curves to compare experiments and refine parameters.

Multi-Program Storage: Save presets (e.g., "Ceramic Sintering Mode") for efficiency.

Pro Tip: Modern furnaces (e.g., Protech Technology models) feature touchscreen controllers, remote operation, and traceable data for streamlined workflows.

Conclusion
Mastering muffle furnace temperature curves unlocks consistent experimental and industrial results. Whether for R&D or production, scientific temperature control ensures efficiency and quality. For further assistance with equipment selection or parameter optimization, consult our expert team for tailored solutions!
